Are Usb Mini A And Mini B The Same Connector Types

USB Mini A and Mini B connectors are not the same. They differ in shape, pin configuration, and the devices they support. Understanding these differences helps you choose the right cable, avoid compatibility issues, and protect your data when connecting older devices.

Have you ever dug through a drawer full of old cables and wondered which one goes where? If you have ever held a USB Mini A plug next to a USB Mini B plug, you might have thought they look almost the same. But here is the thing. They are not the same connector at all. The differences between these two types matter more than most people realize, especially if you are trying to connect an older device or sort through a collection of tech accessories.

USB Mini A and USB Mini B connectors serve different roles in the USB ecosystem. One acts as the host side, while the other connects to the peripheral device. Using the wrong one can mean no data transfer, slow charging, or even a damaged port. In this guide, we will break down everything you need to know about these two connector types. You will learn how to tell them apart, where they are used, and why they matter in the bigger picture of USB technology.

Whether you are a tech enthusiast, a photographer with an old camera, or someone trying to organize a box of tangled cables, this article has you covered. Let us dive into the world of USB Mini connectors and clear up the confusion once and for all.

Key Takeaways

• USB Mini A and Mini B are different connector types with distinct shapes and pin layouts.
• USB Mini A is the host-side connector, while USB Mini B is the device-side connector used in peripherals.
• USB Mini connectors are largely discontinued in favor of Micro USB and USB-C standards.
• Identifying the correct connector prevents damage and ensures proper data transfer.
• USB Mini connectors are still found in older cameras, MP3 players, and some legacy devices.
• Using the wrong cable can lead to slow charging, data loss, or port damage.
• Adapters are available if you need to connect USB Mini devices to modern ports.

What Are USB Mini A and Mini B Connectors?

Before we compare them, let us understand what each connector type actually is. Both USB Mini A and USB Mini B belong to the USB Mini connector family. They were designed as smaller alternatives to the standard USB Type A and Type B connectors. These mini versions came about because portable devices needed compact ports that still supported USB data transfer and power delivery.

Understanding USB Mini A

The USB Mini A connector is the host-side plug in a USB Mini connection. It is found on the cable end that connects to a computer or a USB hub. Think of it as the part of the cable that plugs into the source of power or data. USB Mini A connectors have a flat, rectangular shape with a slightly beveled top edge. They carry five pins inside, which handle data transfer and power delivery.

USB Mini A connectors were part of the original USB On-The-Go (OTG) specification. This standard allowed devices like smartphones and tablets to act as hosts for USB peripherals. In practice, this meant you could plug a keyboard or a flash drive directly into a phone using a USB Mini A cable. The host role is a key part of what makes USB Mini A different from USB Mini B.

Understanding USB Mini B

The USB Mini B connector is the device-side plug. It goes into the peripheral device, such as a camera, MP3 player, or external hard drive. USB Mini B connectors have a more square-ish shape with beveled corners on one side. They typically have five pins as well, but the pin arrangement and the physical shape are different from USB Mini A.

USB Mini B connectors were widely used in digital cameras, portable music players, and early smartphones. When you wanted to transfer photos from your camera to a computer, you would plug the USB Mini B end into the camera and the other end (usually a standard USB A) into the computer. The USB Mini B port on the device receives the connection and handles data sync and charging.

USB Mini A vs Mini B: Key Differences

Now that you know the basic roles of each connector, let us look at the specific differences. These distinctions matter when you are buying cables, troubleshooting connection issues, or trying to figure out which cable belongs to which device.

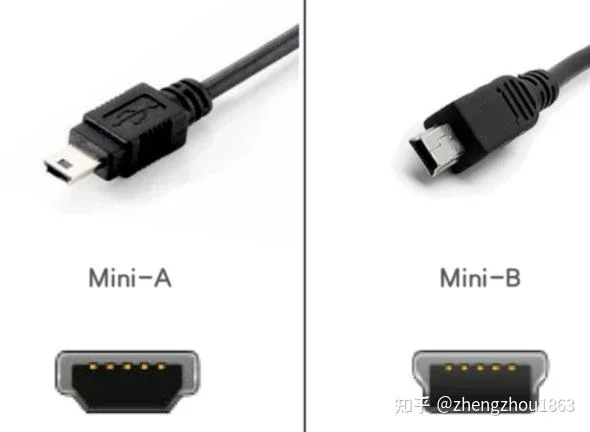

Shape and Design Differences

The most obvious difference between USB Mini A and Mini B is the shape. USB Mini A has a flat, elongated design that looks a bit like a standard USB A plug, just smaller. USB Mini B is more square-shaped with slanted edges on one side. If you place them side by side, the difference is immediately visible.

Here is a quick comparison:

• USB Mini A: Flat and rectangular, beveled at the top, slimmer profile.
• USB Mini B: Square-shaped with beveled bottom corners, slightly thicker.

These shape differences are not just for aesthetics. They serve a functional purpose. The different shapes prevent you from plugging a USB Mini A cable into a USB Mini B port by mistake. This design choice protects devices from incorrect connections that could cause damage.

Pin Configuration and Wiring

Under the hood, USB Mini A and Mini B connectors have different pin configurations. Both use five pins, but the arrangement and function of each pin vary slightly. USB Mini A follows the standard USB A pinout adapted for the smaller form factor. USB Mini B has its own distinct pin layout designed for device-side connections.

For most users, the pin details do not matter much. But if you are building a custom cable or repairing a device, getting the pin configuration right is critical. A wrong wiring setup can lead to data corruption or short circuits. Always refer to the official USB specifications if you are working on anything technical.

Role in the USB Connection

The most important difference is the role each connector plays. USB Mini A is always the host connector. It provides the connection point on the source device. USB Mini B is always the device connector. It receives the connection on the peripheral side. This division is fundamental to how USB OTG works and why the two connectors exist as separate types.

If you try to use a USB Mini A cable where a USB Mini B is needed, it simply will not fit. The reverse is also true. This physical incompatibility is by design. It ensures that devices connect correctly and safely every time.

How to Identify USB Mini A and Mini B Connectors

Identifying these connectors does not require a magnifying glass or a tech degree. You can tell them apart with a quick visual inspection. Start by looking at the overall shape. If the plug is flat and rectangular, you are likely looking at a USB Mini A. If it is more square with beveled corners on the bottom, it is probably USB Mini B.

Here are some simple tips to help you identify each type quickly:

• Check the shape: Rectangular and flat means Mini A. Square-ish with beveled corners means Mini B.
• Look at the cable end: If the cable plugs into a computer or charger, it is likely Mini A on that end.
• Check the device port: Cameras and old MP3 players usually have Mini B ports.
• Feel the edges: Mini A has a smoother, more uniform edge. Mini B has a noticeable bevel on one side.

When in doubt, hold the connector next to a known reference. Many tech stores display sample connectors, or you can find clear comparison images online. Taking a few seconds to identify the connector correctly can save you from buying the wrong cable or damaging a port.

Common Devices That Use USB Mini Connectors

USB Mini connectors were popular for many years, especially during the mid-2000s to early 2010s. While they have been largely replaced by Micro USB and USB-C, you can still find them in a variety of older devices.

Here are some common devices that use USB Mini connectors:

• Digital cameras: Many Canon, Nikon, and Sony cameras from the 2000s used USB Mini B ports for data transfer.
• MP3 players: Older iPod models and other portable music players often relied on USB Mini B connections.
• Portable GPS devices: Garmin and TomTom units from that era commonly used USB Mini B.
• Early smartphones: Some Android phones before the Micro USB era used USB Mini B.
• External hard drives: Certain portable hard drives came with USB Mini B connectors for data and power.
• Gaming controllers: A few older console controllers used USB Mini A or Mini B connections.
• USB OTG adapters: Some OTG cables featured a USB Mini A plug on one end for host connectivity.

If you own any of these older devices, knowing which connector type they use is essential. Using the wrong cable can prevent charging and data transfer entirely. It can also wear out the port over time, leading to costly repairs.

Are USB Mini Connectors Still Relevant Today?

The short answer is: not really. The USB Implementers Forum officially deprecated USB Mini connectors in favor of smaller and more versatile options. USB Micro B took over as the standard for mobile devices, and now USB Type C is dominating the market with its reversible design and faster data speeds.

However, USB Mini connectors are still relevant in certain situations. If you own older devices, you may still need USB Mini cables for data transfer or charging. Vintage tech collectors and hobbyists often seek out these connectors to keep legacy devices running. And in some industrial or specialized applications, USB Mini ports continue to serve a purpose.

The Shift to USB Micro and USB-C

The transition from USB Mini to USB Micro and USB-C happened gradually. USB Micro B became the go-to connector for smartphones and tablets around 2008. It was smaller than USB Mini and offered the same functionality in a more compact form. Then USB-C arrived and changed everything. USB-C supports faster data transfer speeds, higher power delivery, and a reversible design that eliminates the frustration of plugging in the cable the wrong way.

Despite this shift, millions of devices still use USB Mini connectors. If you are dealing with older gear, keeping a few USB Mini cables on hand is a smart move. They are not obsolete yet, even if they are heading in that direction.

USB Mini vs Other USB Connector Types

To fully understand USB Mini A and Mini B, it helps to compare them with other USB connector types. This context shows why USB Mini connectors were designed the way they were and why they eventually gave way to newer standards.

USB Mini vs USB Micro

USB Micro connectors replaced USB Mini in most applications. USB Micro is smaller than USB Mini, which makes it better suited for the increasingly compact devices of the modern era. USB Micro B, for instance, is narrower and shorter than USB Mini B. The transition to Micro connectors also brought improved durability and better support for high-speed data transfer.

Where USB Mini connectors have five pins, USB Micro connectors can have five or more pins depending on the version. USB Micro also supports USB OTG natively, making it more versatile for mobile device connectivity.

USB Mini vs Standard USB-A

The standard USB Type A connector is the large, rectangular plug you find on almost every computer and wall charger. USB Mini A is essentially a smaller version of USB A, designed for portable devices. USB Mini A carries the same host-side role as standard USB A but in a more compact package.

The key takeaway is that size is the main differentiator. USB Mini connectors were created to shrink the USB standard for smaller devices without sacrificing functionality. They brought USB connectivity to devices that could not fit a full-size USB A port.

Protecting Your USB Mini Devices and Ports

Old devices with USB Mini ports deserve proper care. Dust, moisture, and physical wear can degrade these ports over time. When plugging in or removing a USB Mini cable, grip the connector firmly and pull gently. Yanking the cable at an angle can bend the pins or loosen the port.

Keep your USB Mini ports clean. Use compressed air or a soft brush to remove debris. If a connector feels loose or wobbly, stop using it and inspect the port. Continuing to use a damaged connector can lead to data corruption or complete port failure.

Also, be mindful of the power requirements of your devices. USB Mini connectors were designed for lower-power devices. If you try to draw too much power through a USB Mini port, you risk overheating or damaging the port. Always use the cable and charger that came with your device, or a certified replacement that matches the original specifications.

In today’s connected world, where devices communicate constantly and automated threats like bots increasingly target connected hardware, protecting your physical connections matters just as much as digital security. Tech companies are actively developing ways to combat bots that exploit connected devices, and using the right cables and connectors is part of keeping your hardware secure. A stable, correct connection reduces the risk of data interception and unauthorized access through compromised ports.

Where to Find USB Mini Cables and Adapters Today

Finding USB Mini cables is easier than you might think, but you need to know where to look. Electronics stores that specialize in older tech often carry USB Mini cables in stock. Online marketplaces like Amazon and eBay also have a wide selection, though quality can vary. Look for cables from reputable brands and check customer reviews before purchasing.

Adapters are another great option if you cannot find the exact cable you need. USB Mini to USB A adapters let you connect USB Mini devices to modern computers. USB Mini to USB Micro adapters bridge the gap between older and newer connector types. These adapters are affordable and widely available, making it easy to keep your legacy devices connected.

When shopping for USB Mini cables, pay attention to the cable quality. Cheap cables may not support data transfer speeds or power delivery consistently. Look for cables that are USB-IF certified or come from trusted manufacturers. A good cable lasts longer and protects your devices from electrical issues.

Pro tip: If you are buying cables online, search for the exact connector type. Typing “USB Mini A to USB A” or “USB Mini B cable” will give you more accurate results than a generic search. This saves time and ensures you get the right product for your needs.

Common Mistakes People Make with USB Mini Connectors

Even tech-savvy people make mistakes with USB Mini connectors. Here are some common errors to avoid:

• Assuming all Mini connectors are the same: USB Mini A and Mini B look similar but serve different purposes. Always double-check which type your device needs.
• Forcing a connector into the wrong port: If a cable does not fit, do not force it. You may be trying to plug the wrong connector type into the port.
• Using damaged cables: Frayed or bent cables can cause intermittent connections and potentially damage your device’s port.
• Ignoring USB OTG requirements: If you want to use USB OTG, make sure your cable and device both support it. Not all USB Mini connections support OTG functionality.
• Buying cheap unbranded cables: These cables often fail to meet USB specifications and can cause data transfer issues or charging problems.

Avoiding these mistakes saves time, money, and frustration. A little care goes a long way when working with older connector types.

The Future of USB Mini Connectors

USB Mini connectors are a legacy technology at this point. The industry has moved firmly toward USB Micro and USB-C as the standard for new devices. USB-C offers reversible plugging, faster data speeds up to 40 Gbps with USB4, and power delivery up to 240 watts. These capabilities make USB-C the clear choice for modern devices.

That said, USB Mini connectors will remain relevant for years to come among legacy devices. Cameras, audio equipment, and specialized hardware still rely on these ports. Manufacturers are unlikely to produce new USB Mini devices, but the existing installed base ensures that cables and adapters will remain available for the foreseeable future.

If you are storing USB Mini cables for future use, keep them in a cool, dry place. Proper storage prevents the connectors from bending or corroding. Label your cable collection so you can quickly find the right one when you need it. These small habits make a big difference in keeping your older devices functional.

Quick Tips for Working with USB Mini Connectors

• Always check the shape before plugging in. USB Mini A is flat and rectangular; USB Mini B is square with beveled corners.
• Keep a spare USB Mini cable if you own any older devices that use them.
• Use adapters wisely to bridge the gap between USB Mini and modern USB-A or USB-C ports.
• Inspect cables regularly for fraying, bending, or exposed wires.
• Clean USB Mini ports with compressed air to prevent dust buildup.
• Buy from reputable brands to ensure reliable data transfer and safe charging.
• Store cables properly by coiling them loosely and keeping them away from moisture.

Conclusion

USB Mini A and USB Mini B connectors are not the same, and understanding their differences is essential for anyone working with older devices. USB Mini A serves as the host connector, while USB Mini B connects to peripheral devices. Their different shapes, pin configurations, and roles in the USB ecosystem make them distinct and non-interchangeable.

While USB Mini connectors are gradually being replaced by USB Micro and USB-C, they remain important for legacy devices. Knowing how to identify them, use them correctly, and care for them ensures your older tech keeps working as intended. Whether you are transferring photos from a vintage camera or syncing an old MP3 player, the right USB Mini cable makes all the difference.

Take a few minutes to sort through your cable collection and identify your USB Mini connectors. Label them, store them properly, and keep adapters on hand for modern devices. These simple steps save time and protect your hardware. The world of USB connectors can be confusing, but with the right knowledge, you can navigate it with confidence.

Frequently Asked Questions

Can I use a USB Mini A cable with a USB Mini B port?

No, you cannot. USB Mini A and USB Mini B connectors have different shapes and pin configurations. Plugging one into the other is physically impossible. Always use the correct cable type for your device to avoid damage and ensure proper connectivity.

Are USB Mini connectors still manufactured?

USB Mini connectors are no longer actively promoted by the USB Implementers Forum, but they are still manufactured by third-party companies to support legacy devices. You can find USB Mini cables online and in electronics stores, though they are becoming less common as newer standards take over.

What is the difference between USB Mini A and USB Mini B in terms of data transfer speed?

There is no inherent speed difference between USB Mini A and Mini B connectors themselves. Both support the same USB data transfer speeds depending on the USB version they follow, such as USB 2.0 or USB 3.0. The speed depends on the device and cable quality, not the connector type.

Can I charge my old device with a USB Mini cable?

Yes, USB Mini cables can deliver power for charging older devices. However, make sure the cable and charger match the device’s power requirements. Using an incompatible charger can lead to slow charging or potential damage to the battery and port.

Why did USB Mini connectors get replaced by Micro USB?

USB Micro connectors are smaller, more durable, and better suited for the increasingly compact devices of the modern era. They also support USB OTG natively and offer improved pin configurations for faster data speeds and higher power delivery compared to USB Mini connectors.

Do I need a special adapter to connect USB Mini devices to modern computers?

Yes, you will need an adapter or a cable with the appropriate end. USB Mini to USB A adapters are common and affordable. For newer computers with only USB-C ports, you can use a USB Mini to USB-C adapter to maintain compatibility with your older devices.
