Can HDMI Transmit Analog Video Learn The Surprising Answer

The short answer is no, HDMI cannot transmit analog video on its own. HDMI is a purely digital interface designed to carry digital audio and digital video signals. However, you can still connect analog devices to HDMI displays using adapters and converters. This guide explains exactly how the technology works and what you need to know.

Key Takeaways

• HDMI is digital only: It cannot natively carry analog video signals without additional hardware.
• Adapters and converters bridge the gap: You can connect older analog devices to modern HDMI displays with the right tools.
• DACs are essential: A digital-to-analog converter is needed when going from HDMI to analog, and vice versa.
• VGA and composite are common analog formats: Many older devices still use these video outputs.
• Signal quality matters: Cheap adapters can degrade your video output significantly.
• HDMI versions matter: Different HDMI versions support different features and resolutions.
• HDCP protection can block conversions: Some digital content is protected and may not convert easily.

Can HDMI Transmit Analog Video? The Surprising Answer

If you have ever plugged an old device into a modern TV and wondered why nothing works, you are not alone. The question of can HDMI transmit analog video comes up all the time. Many people assume HDMI is just a cable that carries any kind of video signal. But the truth is more specific than that.

HDMI stands for High-Definition Multimedia Interface. It is a digital connection standard. That means it only handles digital signals. It does not carry analog video on its own. But do not worry. There are simple ways to make older analog devices work with HDMI displays. You just need the right adapter or converter.

In this article, we will break down everything you need to know. We will cover how HDMI works, what analog video is, and how you can connect your older devices to modern screens. Whether you have an old DVD player, a retro gaming console, or a legacy computer, this guide has you covered.

What Is HDMI and How Does It Work?

HDMI is the most common connection type for modern TVs, monitors, and projectors. It carries both audio and video through a single cable. This makes it very convenient. You plug one cable in and get high-quality sound and picture.

The HDMI standard was introduced in 2003. Since then, it has gone through several versions. Each new version brought better features. For example, HDMI 1.4 added support for 4K resolution at 30Hz. HDMI 2.0 pushed that to 4K at 60Hz. The latest versions support even higher resolutions and refresh rates.

How Digital Signals Work

Digital signals use binary code. That means they send information as ones and zeroes. This is very different from analog signals, which use continuous electrical waves. Digital signals are less prone to interference and quality loss over distance. This is one reason HDMI became so popular.

When you send a digital video signal through an HDMI cable, the data stays clean. There is no signal degradation like you might see with older cable types. This is why HDMI delivers such crisp picture quality.

Different HDMI Connector Types

Not all HDMI connectors are the same. There are several types you might encounter:

• Standard HDMI (Type A): The most common type. Found on TVs, monitors, and laptops.
• Mini HDMI (Type C): Used on some tablets and smaller cameras.
• Micro HDMI (Type D): Found on some smartphones and portable devices.
• HDMI Type B (Dual Link): Rare. Used for very high-resolution displays.

Each connector type carries the same digital signal. The difference is just the physical size. So the connector type does not change how HDMI handles video.

Understanding Analog Video Signals

Before we answer the main question, it helps to understand what analog video actually is. Analog video signals have been around for decades. They were the standard long before digital connections like HDMI came along.

Analog video works by sending a continuous electrical signal that represents the image. The signal varies in voltage to create the picture you see on screen. This is very different from the binary digital signals used by HDMI.

Common Analog Video Formats

There are several types of analog video connections you might still have at home:

• VGA (Video Graphics Array): A very common analog connection for computers. It uses a 15-pin connector.
• Composite Video: The yellow RCA connector you see on older TVs and VCRs.
• Component Video: Uses three RCA connectors for better quality than composite.
• S-Video: A step up from composite. Uses a round connector with two pins.
• SCART: Common in Europe. Carries both audio and video through one connector.

All of these formats carry analog signals. They are all different from the digital nature of HDMI. This is the core reason why HDMI cannot directly transmit analog video.

Why Analog Signals Are Different

Analog signals degrade over distance and with poor cabling. You might notice ghosting, color bleeding, or a fuzzy picture. This happens because the electrical wave gets distorted. Digital signals like HDMI do not have this problem in the same way.

However, analog signals have one advantage. They can be decoded by any device that understands the format. There is no need for a digital-to-analog conversion step. This makes them simpler in some ways, even if the quality is lower.

Can HDMI Transmit Analog Video? The Truth

Now we get to the core question. The direct answer is no. HDMI cannot transmit analog video natively. The HDMI standard was designed exclusively for digital signals. There is no built-in mechanism for carrying analog video through an HDMI cable.

When you plug an analog device directly into an HDMI port, nothing will work. The HDMI port expects a digital signal. It does not know how to read an analog waveform. You will get no picture, or you might see an error message on your display.

The Role of Converters and Adapters

Even though HDMI cannot carry analog video on its own, you are not stuck. Converters and adapters solve this problem. These devices translate the signal from one format to another.

There are two main scenarios where you need signal conversion:

1. Analog to HDMI: You have an older device with VGA or composite output and want to connect it to an HDMI display.
2. HDMI to Analog: You have a modern HDMI source and want to connect it to an older analog monitor or projector.

In both cases, you need a converter box or adapter. The converter does the heavy lifting of changing the signal format.

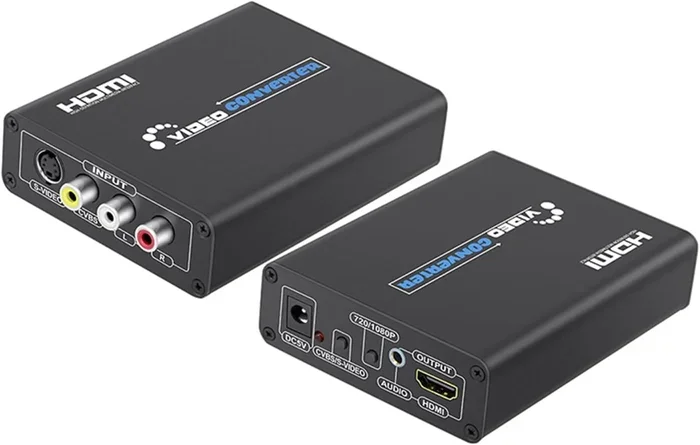

What Happens Inside a Converter

A converter contains a chip that handles the translation. For analog-to-HDMI, the device takes the analog waveform and converts it into digital data. This process is called analog-to-digital conversion. The converter then wraps that digital data into an HDMI signal.

For HDMI-to-analog, the process works in reverse. The converter takes the digital HDMI signal and turns it back into an analog waveform. This is called digital-to-analog conversion. A small chip inside the device handles this task.

The quality of the converter matters a lot. Cheap converters can introduce lag, lower the resolution, or produce a poor picture. It is worth investing in a good-quality converter for the best results.

How to Connect Analog Devices to HDMI Displays

So you have an old device and a modern HDMI TV. How do you make them work together? The answer is simple. You need the right adapter or converter box.

Step-by-Step Connection Guide

Here is how you can connect most analog devices to an HDMI display:

1. Identify your analog output: Check what kind of port your source device has. Is it VGA? Composite? Component?
2. Buy the right converter: Match the converter to your analog output type. For example, get a VGA to HDMI converter for a computer with VGA output.
3. Connect the analog cable: Plug the analog cable from your source device into the converter.
4. Connect the HDMI cable: Run an HDMI cable from the converter to your TV or monitor.
5. Power the converter: Many converters need their own power source. Plug in the USB cable or power adapter.
6. Switch your display input: On your TV, select the correct HDMI input channel.
7. Adjust settings: You may need to tweak the resolution or display settings on your source device.

That is it. You should now see your analog device on the HDMI screen. The picture quality will depend on the converter and the original signal quality.

Quick Tips for Better Results

• Use a short, high-quality HDMI cable to reduce signal loss.
• Make sure your converter supports the resolution of your source device.
• If you see no picture, try a different HDMI port on your TV.
• Check that your converter is compatible with the HDMI version of your display.
• Some converters also handle audio. Look for ones with a 3.5mm audio output if you need sound.

Popular HDMI Adapter and Converter Options

The market is full of adapters and converters. It can be overwhelming to choose the right one. Here are some common options and what they do.

Converter Type	Input	Output	Best For
VGA to HDMI	Analog VGA	Digital HDMI	Connecting old computers to modern TVs
Composite to HDMI	Analog RCA	Digital HDMI	Old DVD players and VCRs
Component to HDMI	Analog Component	Digital HDMI	Retro gaming consoles
HDMI to VGA	Digital HDMI	Analog VGA	Connecting HDMI laptops to old projectors
HDMI to Composite	Digital HDMI	Analog RCA	Older TVs that only have RCA inputs
HDMI to Component	Digital HDMI	Analog Component	Legacy AV receivers

Each converter serves a specific purpose. Make sure you pick the one that matches your setup. Buying the wrong type will not work.

What to Look for in a Converter

Not all converters are created equal. Here are some things to keep in mind when shopping:

• Resolution support: Make sure the converter supports at least 1080p for good quality.
• Audio passthrough: Some converters handle audio too. Check if you need this feature.
• HDCP compatibility: HDMI content is often protected by HDCP. Cheap converters may not support this.
• Build quality: Metal housings tend to perform better than plastic ones.
• Brand reputation: Stick with well-known brands for reliability.

Common Mistakes When Using HDMI with Analog Devices

Many people run into problems when trying to connect analog devices to HDMI. Most of these issues are easy to avoid.

Mistake 1: Plugging Directly Without a Converter

The most common mistake is trying to plug an analog cable directly into an HDMI port. This will not work. HDMI only accepts digital signals. You must use a converter to translate the signal first.

Mistake 2: Using Low-Quality Adapters

Cheap adapters from unknown brands can cause all sorts of problems. You might get a flickering picture, no sound, or a very low resolution. Investing in a decent converter saves you a lot of frustration.

Mistake 3: Ignoring HDCP Protection

HDCP stands for High-bandwidth Digital Content Protection. It is a copy protection system built into HDMI. Some converters cannot handle HDCP content. If you try to play protected content through a cheap converter, you might get a black screen.

Mistake 4: Forgetting to Power the Converter

Many HDMI converters need external power. They come with a USB cable for this purpose. If you skip this step, the converter might not work at all. Always check if your converter needs power.

Mistake 5: Wrong Display Input Selection

It sounds simple, but many people forget to switch their TV to the right HDMI input. If you plug into HDMI port 2, make sure your TV is set to that input. Otherwise, you will see no picture.

Expert Tips for the Best HDMI and Analog Setup

Getting the best results from your HDMI and analog setup takes a little know-how. Here are some expert tips that make a real difference.

First, always check your HDMI version. Different HDMI versions support different features. If your TV has HDMI 2.0, it can handle 4K at 60Hz. Older HDMI 1.4 ports max out at 4K 30Hz. Knowing your version helps you set realistic expectations.

Second, keep your cables short. Longer cables mean more chance of signal loss. For the best picture quality, use cables that are just long enough to reach. Under 6 feet is ideal for most setups.

Third, update your display drivers. If you are connecting a computer, make sure your graphics drivers are up to date. This ensures the best compatibility with your converter and display.

Fourth, test with known-good content. If you are having trouble, try playing a simple video file you know works. This helps you figure out if the problem is with the converter or the source content.

Fifth, consider an AV receiver. If you have a complex home theater setup, an AV receiver can handle multiple input types. Many receivers have both HDMI and analog inputs. This simplifies your connections.

Finally, be patient with older devices. Retro equipment can be finicky. Sometimes you need to adjust refresh rates or resolutions manually. Do not give up if it does not work on the first try.

Frequently Asked Questions

Can I connect a VGA computer to an HDMI TV without a converter?

No, you cannot. VGA carries an analog signal and HDMI only accepts digital signals. You need a VGA to HDMI converter to make the connection work. The converter translates the analog signal into a digital format that your TV can read.

Do HDMI to VGA adapters need power?

Some do and some do not. Passive HDMI to VGA adapters work without power for basic connections. Active adapters and converters usually need external power, often through a USB cable. Check the product specifications before buying to be sure.

Will a converter reduce my video quality?

It can. The conversion process from analog to digital or vice versa may result in some quality loss. However, a good-quality converter will minimize this loss. Cheap converters are more likely to produce a blurry or low-resolution image.

Does HDMI support older video formats like composite or S-Video?

No, HDMI does not support these formats natively. Composite and S-Video are analog signals. HDMI is digital only. You need a specific converter box for each analog format to connect to an HDMI display.

Can HDCP block my analog conversion setup?

Yes, it can. HDCP protects digital content from being copied. Some converters do not support HDCP, which means protected content may not play through them. Look for converters that are HDCP compliant if you plan to watch copyrighted content.

What is the difference between an HDMI adapter and an HDMI converter?

An adapter simply changes the physical connector type. It does not change the signal format. A converter actually translates the signal from one format to another, such as analog to digital. If you need to change signal types, you need a converter, not just an adapter.

Conclusion

The answer to the question can HDMI transmit analog video is clear. HDMI is a digital-only interface. It cannot carry analog video signals by itself. But that does not mean your older devices are useless.

With the right converter or adapter, you can connect almost any analog device to an HDMI display. The key is understanding the difference between digital and analog signals. Once you know that, choosing the right equipment becomes much easier.

Remember to invest in quality converters. Avoid the common mistakes we covered. And do not be afraid to experiment with your setup. Technology should make your life easier, not harder.

Whether you are setting up a retro gaming station, connecting an old DVD player, or using a legacy computer, the right HDMI setup can bring your devices into the modern age. Take your time, pick the right tools, and enjoy your upgraded viewing experience.
